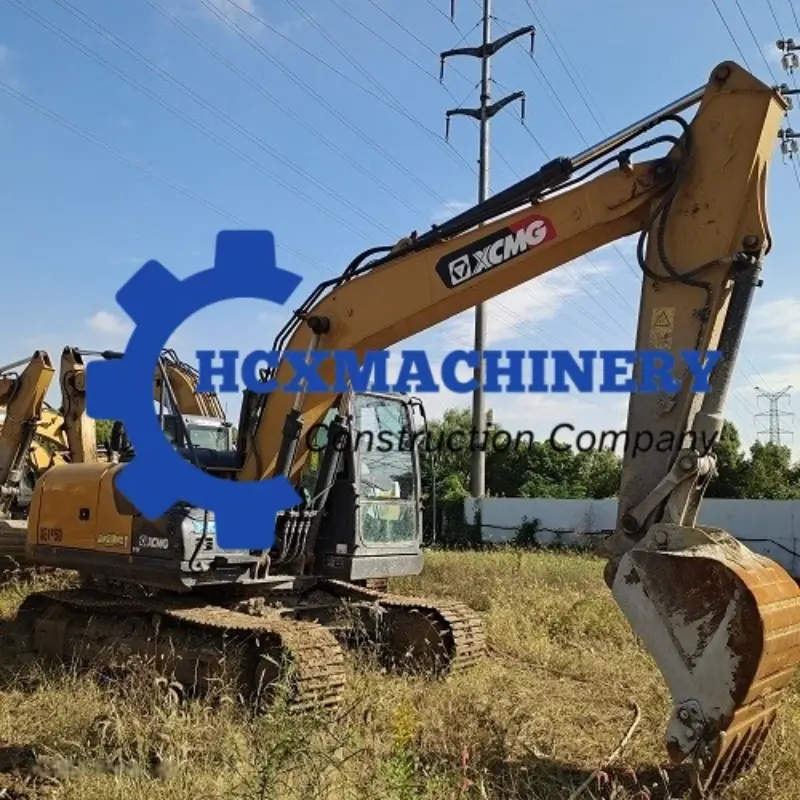

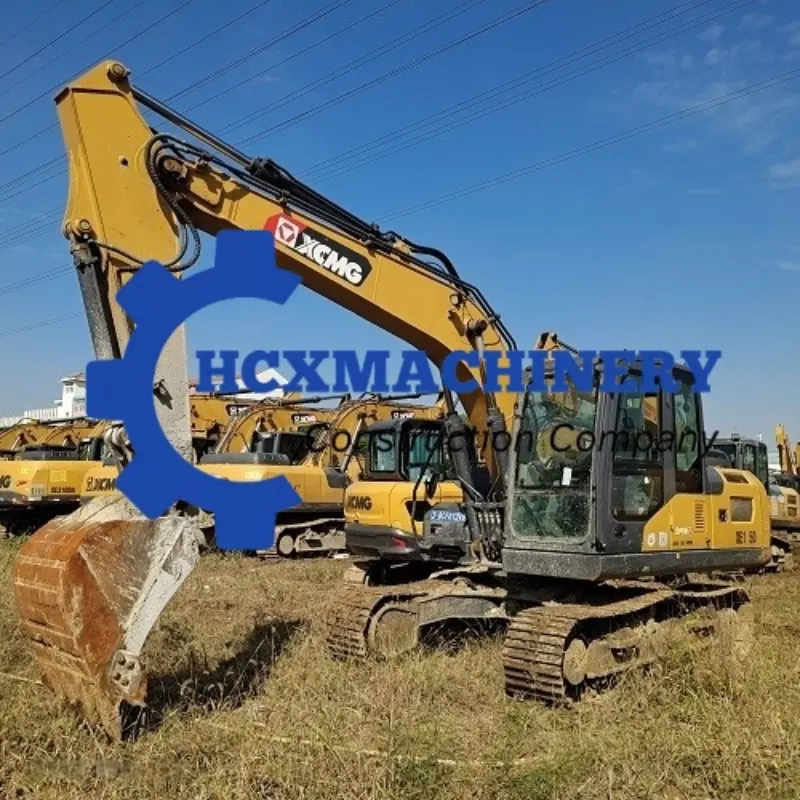

Good Conditon XCMG 135D Used Excavator For Sale
Rated power
86kw/2200rpm
Operation Weight
13200Kg
Bucket capacity
0.32-0.61m³
XE135D
The hydraulic excavator is equipped with a low-speed high-torque engine with high efficiency and low fuelconsumption. The large undercarrige and pilot buffer are more stable and comfortable to operate; the maintenance parts are moved outwards, the maintenance period is extended, the maintenance is more convenient; a variety of optional accessories, as well as altitude adaptive control functions, the environment adaptability is better. It can be widely used in small and medium-sized earth and stone works, highway and bridge construction, trenching and construction, farmland water conservancy, river dredging and municipal construction. It can also achieve different operations such as digging, crushing and dismantling, and is highly adaptable to working conditions.
PARAMETERS
| Sales model | Unit | Measurement | |
| Operating weight | Kg | 13200 | |
| Bucket capacity | m³ | 0.32-0.61 | |
| Engine | Model | / | QSF3.8 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | √ | |
| Air cooled | / | √ | |
| No. of cylinders | / | 4 | |
| Output power | kw/rpm | 86/2200 | |
| Maximum torque/speed | N.m/rpm | 470/1300 | |
| Displacement | L | 3.8 | |
| Main performance | Travel speed | km/h | 5.2/2.9 |
| Swing speed | r/min | 11 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 40.4 | |
| Bucket digging force | kN | 99.1 | |
| Arm digging force | kN | 68 | |
| Maximum traction | kN | 134 | |
| Hydraulic system | Main pump | / | / |
| Rated flow of main pump | L/min | 125.4*2 | |
| Main safety valve pressure | MPa | 31.4/34.3 | |
| Travel system pressure | MPa | 34.4 | |
| Rotary system pressure | MPa | 25 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 260 |
| Hydraulic tank capacity | L | 105 | |
| Engine oil capacity | L | 11 | |
| Appearance size | A Overall length | mm | 7795 |
| B Overall width | mm | 2525 | |
| C Overall height | mm | 2880 | |
| D Width of platform | mm | 2490 | |
| E Track length | mm | 3648 | |
| F Overall width of chassis | mm | 2490 | |
| G Track width | mm | 500 | |
| H Length to center of rollers | mm | 2918 | |
| I Track gauge | mm | 1990 | |
| J Counterweight clearance | mm | 931 | |
| K Min. ground clearance | mm | 466 | |
| L Min. tail swing radius | mm | 2325 | |
| M Track height | mm | 802 | |
| Working scope | A Max. digging height | mm | 8638 |
| B Max. dumping height | mm | 6174 | |
| C Max. digging depth | mm | 5546 | |
| D Maximum depth cut for 2240mm(8 ft) level bottom | mm | 5335 | |
| E Max. vertical wall digging depth | mm | 4698 | |
| F Max. digging radius | mm | 8304 | |
| Min. swing radius | mm | 2445 | |
| Standard configuration | Length of boom | mm | 4600 |
| Length of arm | mm | 2520 | |
| Bucket capacity | m³ | 0.52 Strengthened bucket | |
| Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | 2100/3010 | |
| Bucket capacity | m³ | 0.32/0.4/0.61 | |
